Acoustic Movable Partition Wall Systems with Sliding Wall Panels
High quality AE operable partition walls are suitable for sights, where the spaces are desired to be divided quickly into different parts. The spaces can be made multifunctional and they will transform according to the need, into closed or open entireties.
What we offer:
1) German Partition Technology Global Professional Space Solutions
2) Highly competitive prices
3) Good quality control
4) Smooth communication
5) state-of-art technology products
6).Well-trained and experienced staffs to answer all your inquiries in Fluent English
7).We can follow your design to produce
Roller Option & Feature:
1. Dupont POM roller
2. 304 stainless steel heavy duty roller with safety device & CNC machining
3. Unique and patented wheel surface and shape make the whole movable partition easy to use
Panel Option & Feature
1. Thickness: 68mm & 89mm & 105mm
2. Wide variety of acoustical and decorative finishes available
3. 6061-T6 profile and inside Q235 steel frame for superior durability
4 Top & bottom jack lifting mechanism seal are with power of 800N. Magnetic seal in concave & convex profile has magnetic attraction of 40N/m,
Specification:
| GEMMAN PARTITION TECHNOLOGY GLOBAL PROFESSONAL SPACE SOLUTIONS |
| | Dimensions in mm* | Design |
| Series | Element thickness | Element width* (min./max.) | Clear height* (min./max.) | Framed construction | Panel fixing | Element interconnection/design of
the vertical profiles |
| AE65 | 68 | 600/1,250 | 2,000/4,500 | Aluminium-steel | Freely oscillating | Aluminium profile
with magnetic strip
and sealing lips |
| AE85 | 89 | 600/1,250 | 2,000/5,500 | Aluminium-steel | Freely oscillating | Aluminium profile
with magnetic strip
and sealing lips |
| AE100 | 105 | 600/1,250 | 2,000/18,000 | Aluminium-steel | Freely oscillating | Aluminium profile
with magnetic strip
and sealing lips |
| Technology:
Weighted sound reduction value determined per GB/T19889.3-2005 in Rw (dB):52/56
Positive and frictional locking of the vertical element connections: Convex-concave profile form, force of attraction of the magnetic strip 40 N/m
* Larger widths possible on application. Provisional details regarding the element heights/element
widths indicated can only be confirmed following consultation with the Design Department.
** Depending on the sound insulation/weight |
Product Tags:
|
|

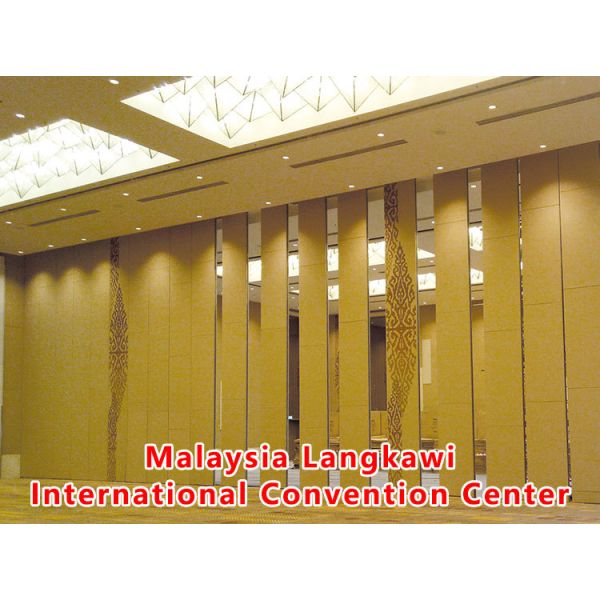

Acoustic Movable Partition Wall with Dupont POM Roller and Top & Bottom Jack Lifting Mechanism Images
|
